Dyno Results – Original Parts

These are the results from a Chassis Dyno at Pick-Ups Plus.

  • The peak Horsepower at the wheels was 194hp, which equates to about 242hp at the flywheel.
  • The peak Torque at the wheels was 231ft-lbs, which equates to about 288ft-lbs.

The numbers are not what I was expecting, but the engine was probably ran very hard and needs a little TLC. I’m thinking that will start sooner than I thought.

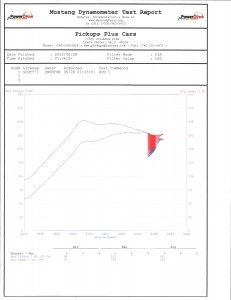

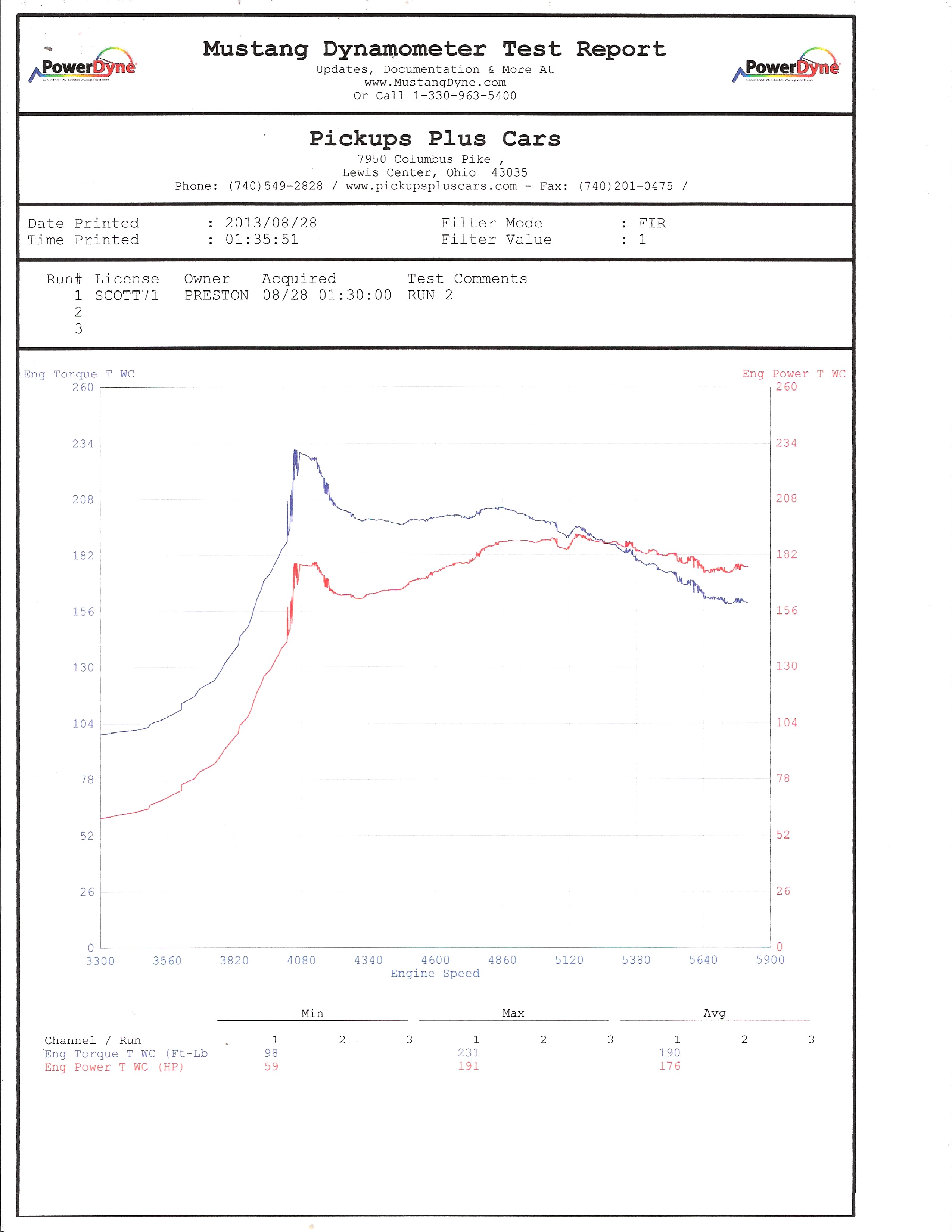

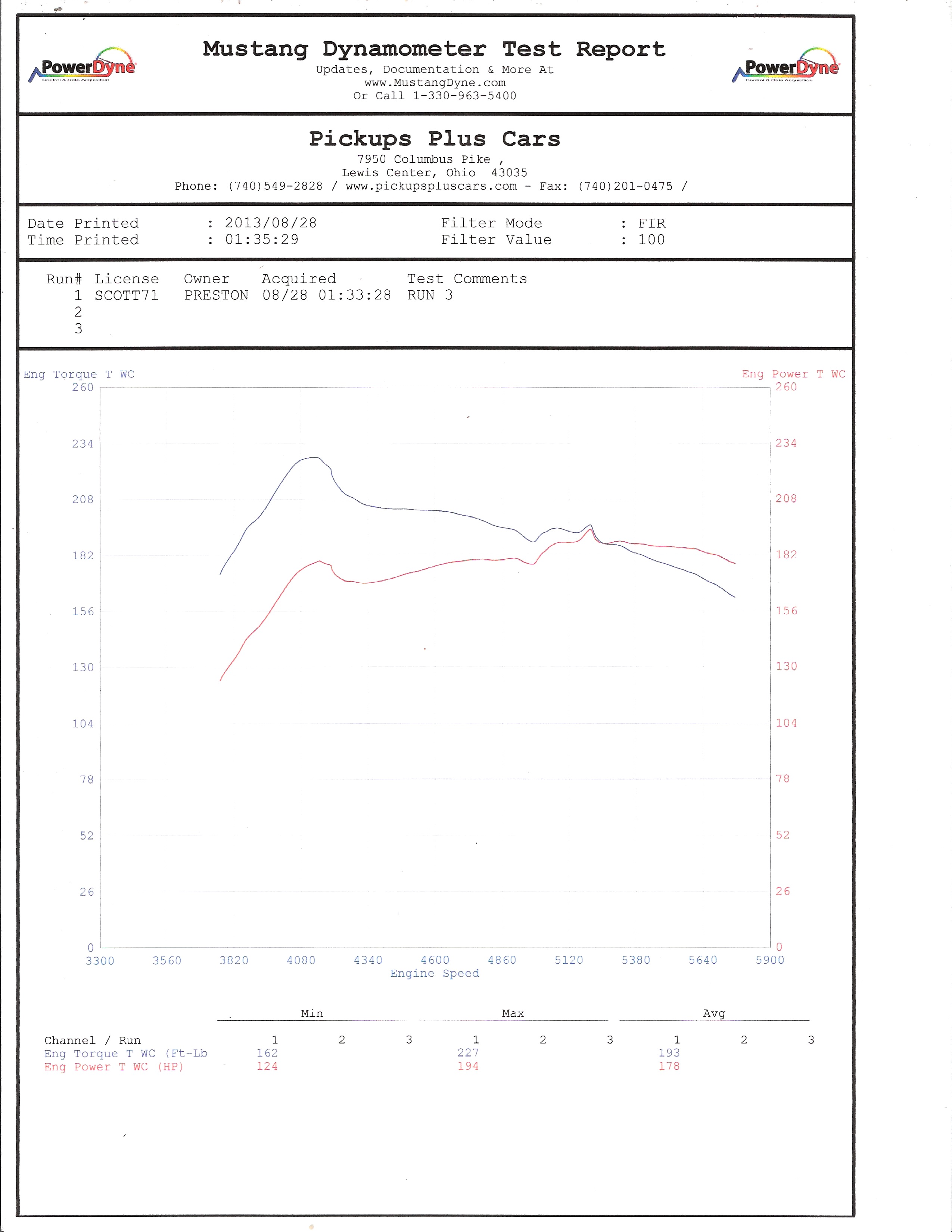

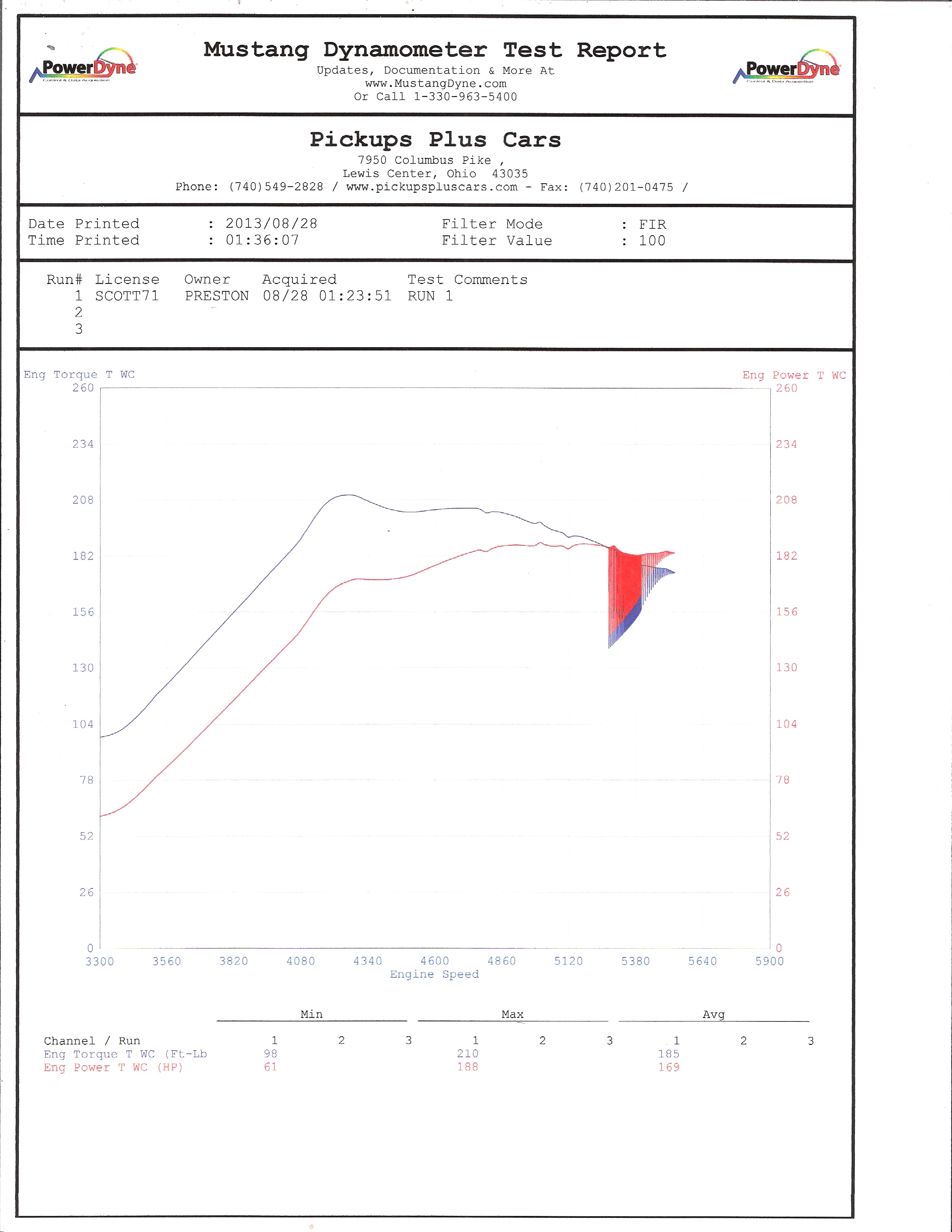

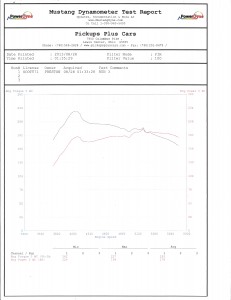

Scan 12Scan 11Scan 10

One thing I’m noticing, the runs look good (though a little low) until it hits around 4100RPM, then it flattens out but it looks like there’s more to go. Going to investigate…
